LY-485C Visual Positioning Machine with ±0.05mm Accuracy, 35-45 PCS/Min Capacity, and YAMAHA Robot Arm

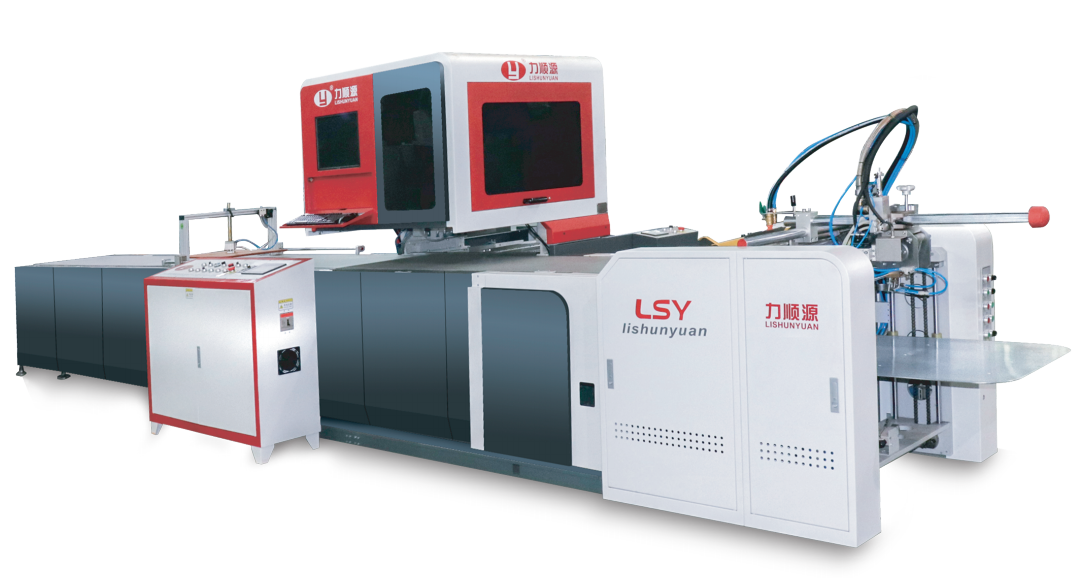

LY-485C Multifunctional Visual positioning machine

Facility profile

1. Independent control by different servo motor for feeding, avert double sheet and incline.
2. Within 2 sets of high precision cameras and YAMAHA robot arm, Positioning accuracy of ± 0.05mm. YAMAHA robot arm are adopted to accurate position all kinds of product, such like rigid box, case maker, covering, plastic box, wooden box, irregular shaped box, etc.
3. Able to production Rigid Box and Hard Cover(Case Maker) at the same time
4. Able to production box and case at the same time, Capacity up to35-45 PCS/Min.
5. Easy to setup enhance productivity and increase enterprise profit

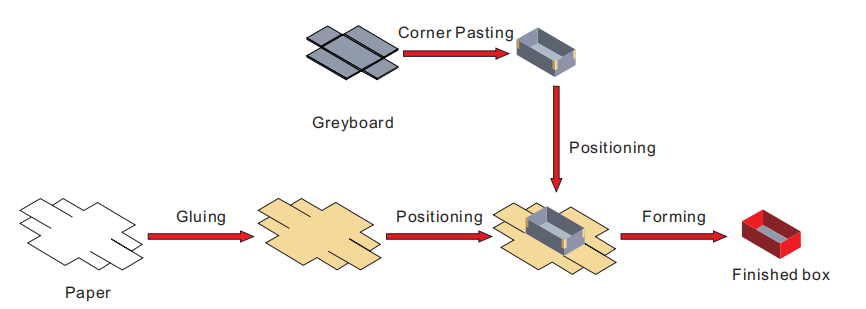

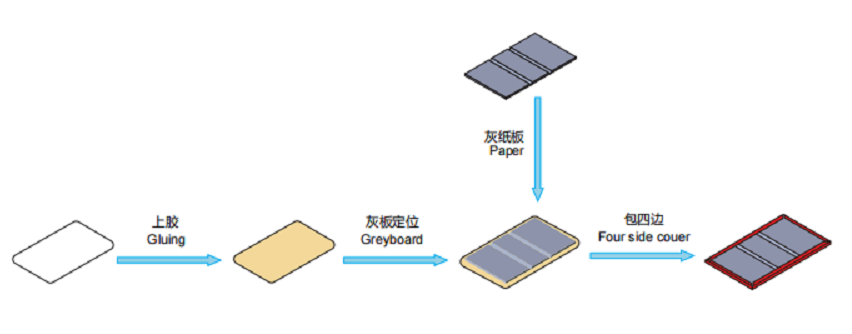

Process flow

Facility profile

1. Independent control by different servo motor for feeding, avert double sheet and incline.
2. Within 2 sets of high precision cameras and YAMAHA robot arm, Positioning accuracy of ± 0.05mm. YAMAHA robot arm are adopted to accurate position all kinds of product, such like rigid box, case maker, covering, plastic box, wooden box, irregular shaped box, etc.
3. Able to production Rigid Box and Hard Cover(Case Maker) at the same time
4. Able to production box and case at the same time, Capacity up to35-45 PCS/Min.
5. Easy to setup enhance productivity and increase enterprise profit

Details

High precision robot suction box, double camera vision positioning accuracy ±0.05mm;

Split board positioning function,able to position 1-6pieces board gap of board 0.5mm+,the narrowest2.5mm;

Pull-down positioning function can be applied to,such as case lining,scratch proof;gray board deformation,direct push is no smooth;special process of gray board surface,scratch proof,peeling,etc.

Technical Parameters
