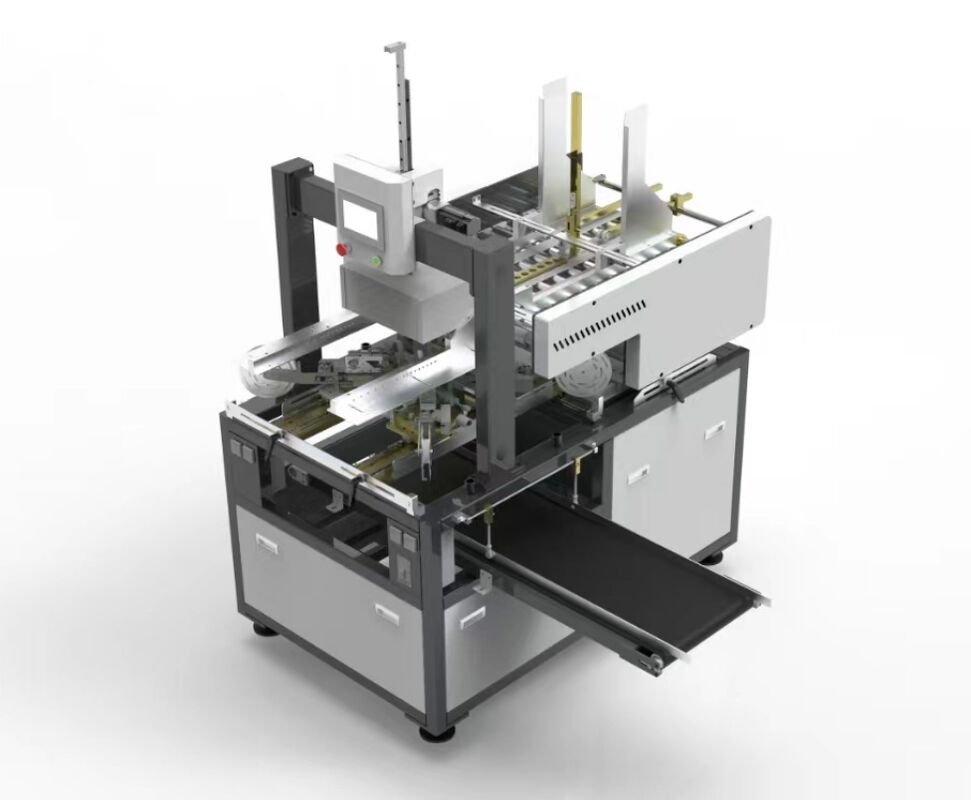

LY-430TJ Multiple Corner Pasting Machine
This automatic corner pasting machine is engineered to seamlessly paste corners for rigid and sleeve boxes. Driven by servo motors and PLC-controlled, the machine ensures accurate tape application via a user-friendly touch screen interface. A high-alloy tape slot prevents jamming, while the bottom feeder design enables non-stop operation, greatly boosting production efficiency for box manufacturers.
Key Features
- Driven by servo motor, and controlled by PLC.
- Operated by touch screen easy operating .
- Tape bale to be attached two bevel boxes, and the ultra-high boxes can be attached. Able to past corners twice to increase the firmness.
- Able to past the rigid box and sleeves boxes.
- All electric parts are from famous brand, low error and high precision.
- With malfunction alarm and fault display.
- Boards are fed from bottom, thus no need to stop the machine for adding boards.
- The main shaft adopts servo motor to drive the gear guide rail, making sure every accurate movement.

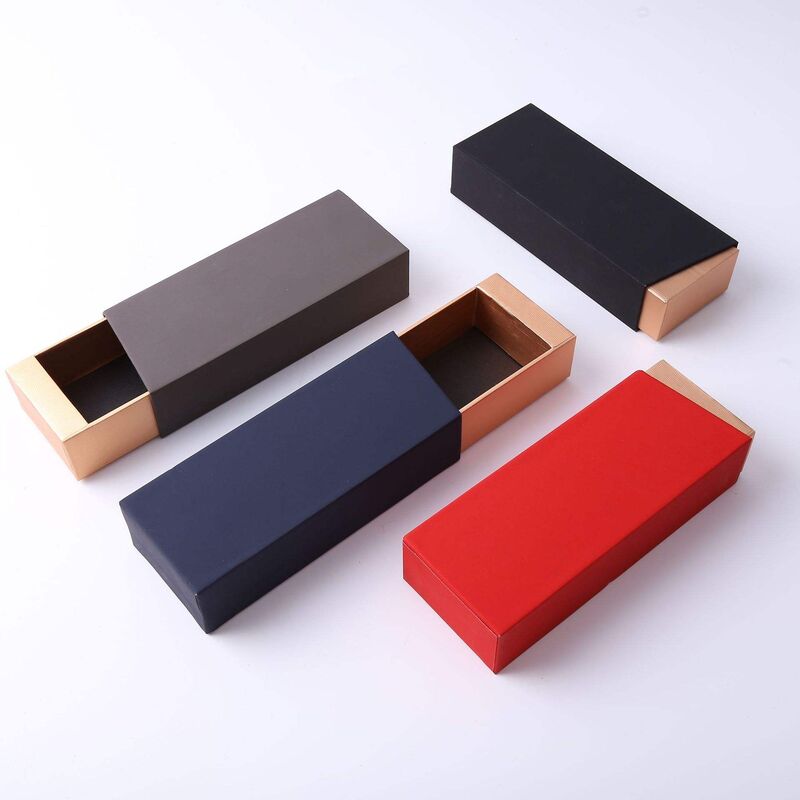

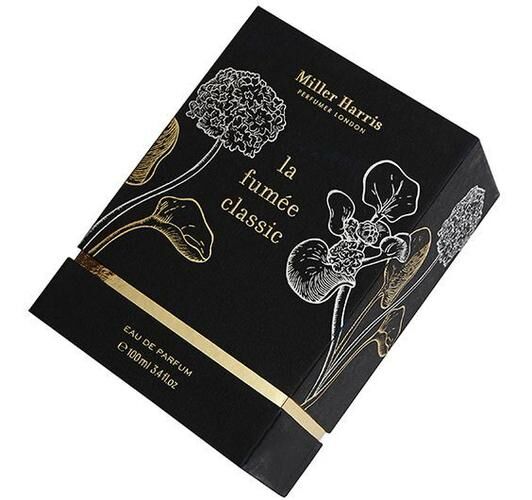

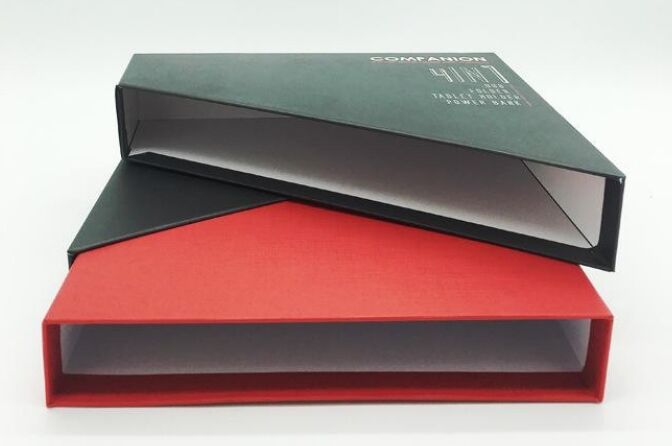

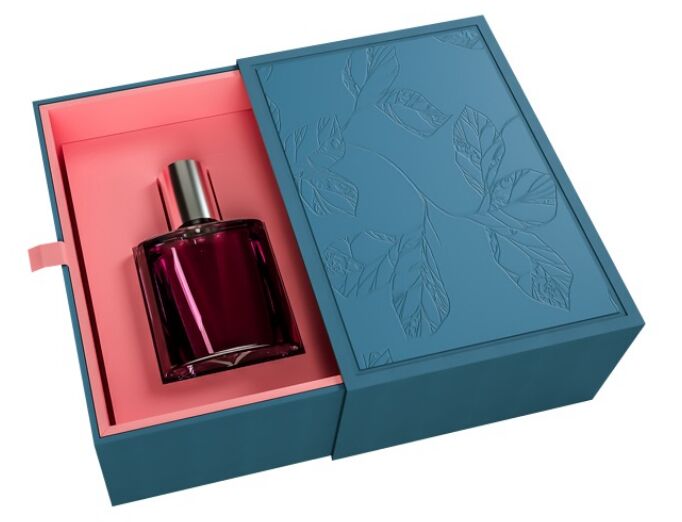

Product Examples
Product Types
Technical Specification
|
Model
|
LY-430TJ |
|
Thickness of board
|
1.0 - 5mm |
|
Maximum size for sleeve box
|
D200*330*100mm |
|
Minimum size for sleeve box
|
D50*50*20mm |
|
Capacity
|
45-55PCS/min |
|
Maximum size for rigid box
|
400*400*130mm |
|
Minimum size for rigid box
|
50*50*20mm |
|
Capacity
|
40-50PCS/min |
|
Power supply
|
220V/2KW |
|
Machine Power
|
3.5kw |
|
Air pressure
|
0.8pa |
|
Machine weight
|
1300KG |
|
Machine size
|
1670*1170*1880mm |
Packing and Shipping
